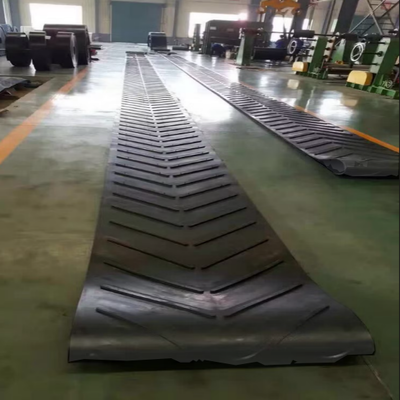

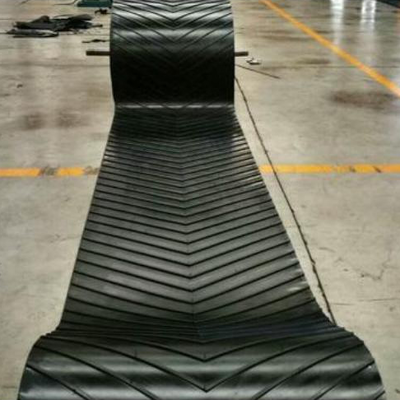

Herringbone Pattern Black Conveyor Belt 300-800mm Width for 0-40° Inclination Angle

Name: Herringbone Pattern Black Conveyor Belt 300-800mm Width for 0-40° Inclination Angle
Brand: CDINDUSTRY(INTERNATIONAL).INC
SKU: EP100/EP150/EP200/EP250/EP300
Price: 54.20 USD
Availability: InStock

Merknaam:	UCER
Modelnummer:	EP100/EP150/EP200/EP250/EP300
MOQ:	100 meter
Prijs:	Onderhandelbaar
Leveringstermijn:	10-30 dagen
Betalingsvoorwaarden:	L/C, D/P, T/T

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

Enterprise credit rating AAA

Kleur:

Zwart

Bandbreedte:

500 mm

Patroonhoogte:

15 mm

Nationale standaard:

GB/T7984-2001

Kernmateriaal:

EP/NN/CP

Patroontype:

Gestreept patroon

Hellingshoek:

0-40°

Samenstelling:

Gordel en patroon

Verpakking Details:

Ijzerverpakking, ijzerkader of andere

Levering vermogen:

10000 per maand

Productbeschrijving

Herringbone Pattern Black Conveyor Belting 300-800mm Width

Product Overview

Herringbone pattern black conveyor belting designed for efficient material handling with widths ranging from 300mm to 800mm. This specialized belting prevents material slippage on inclined conveyors up to 40 degrees.

Key Features

Core Material: Available in ordinary cotton canvas (CC), polyester-cotton blended canvas (CP), nylon (NN), polyester (EP), and other materials
Bandwidth: 300mm to 800mm range
Pattern Height: 5mm, 10mm, 15mm, 20mm options available
Custom Patterns: Pattern shapes can be designed according to user requirements
Performance: Suitable for conveying materials with inclination angles of 0-40° to prevent material sliding

Product Standards and Specifications

Variety	Standards and Main Indicators
Ordinary steel cord conveyor belt	GB/T9770-2001
Flame-retardant steel cord conveyor belt	MT668-1997
General flame-retardant steel cord conveyor belt	MT668-1997
Heat-resistant steel cord conveyor belt	HG2297-92
Wear-resistant steel cord conveyor belt	Shaoboer wear amount ≤90mm³
Acid, alkali and oil resistant steel cord conveyor belt	HG4-846
Cold-resistant steel cord conveyor belt	Brittleness temperature -40℃

Pattern Types

1) Herringbone Pattern

The belt surface features "herringbone" patterns higher than the belt body, available in open or closed configurations. Patterns are classified as high, medium, or low types.

Applications: Suitable for conveying powdery, granular, and small materials with inclination angles ≤40 degrees. Also effective for bagged materials.

2) Striped Pattern

Features striped patterns higher than the belt body, available in high, medium, and low types with sparse or dense arrangement spacing.

Applications: Ideal for horizontal transportation of packages with inclination angles ≤30 degrees. When grooved, can serve as an alternative to herringbone patterns.

3) Grainy Pattern

Includes grain patterns that are either raised above or recessed into the belt surface. Pits can be designed as square holes, prismatic shapes, or cloth patterns.

Construction and Composition

The pattern conveyor belt consists of two main components: the base belt and the pattern surface.

Taggen:

NN150 kolenmijntransportband

200mm Bandbreedte RubberTransportbanden

Kolenmijn RubberTransportbanden

Gerelateerde producten

NN100 NN150 NN200 NN250 Warmtebestendige koudbestendige rubberbanden

Vind de beste prijs

Zwarte Rubber de Transportbandriem van EP200 EP250 EP300

Vind de beste prijs

Details Van De Producten

Huis Producten

met een gewicht van niet meer dan 50 kg

Herringbone Pattern Black Conveyor Belt 300-800mm Width for 0-40° Inclination Angle

Alle Categorieën

De Transportband van de draadkabel

Staalkoord-transportband

met een gewicht van niet meer dan 50 kg

Neigend transportband

Lichte transportband

Speciale transportband

Jakobsladdertransportband

Zware transportketens

Transmissie aandrijflijnen

Schrapertransportbanden

Cranked Koppelingketen

Ketting Gedreven Tanden

De Delen van de rolketting

Herringbone Pattern Black Conveyor Belt 300-800mm Width for 0-40° Inclination Angle

Merknaam:	UCER
Modelnummer:	EP100/EP150/EP200/EP250/EP300
MOQ:	100 meter
Prijs:	Onderhandelbaar
Verpakking:	Ijzerverpakking, ijzerkader of andere
Betalingsvoorwaarden:	L/C, D/P, T/T

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Merknaam:

UCER

Certificering:

Enterprise credit rating AAA

Modelnummer:

EP100/EP150/EP200/EP250/EP300

Kleur:

Zwart

Bandbreedte:

500 mm

Patroonhoogte:

15 mm

Nationale standaard:

GB/T7984-2001

Kernmateriaal:

EP/NN/CP

Patroontype:

Gestreept patroon

Hellingshoek:

0-40°

Samenstelling:

Gordel en patroon

Min. bestelaantal:

100 meter

Prijs:

Onderhandelbaar

Verpakking Details:

Ijzerverpakking, ijzerkader of andere

Levertijd:

10-30 dagen

Betalingscondities:

L/C, D/P, T/T

Levering vermogen:

10000 per maand

Productbeschrijving

Herringbone Pattern Black Conveyor Belting 300-800mm Width

Product Overview

Key Features

Core Material: Available in ordinary cotton canvas (CC), polyester-cotton blended canvas (CP), nylon (NN), polyester (EP), and other materials
Bandwidth: 300mm to 800mm range
Pattern Height: 5mm, 10mm, 15mm, 20mm options available
Custom Patterns: Pattern shapes can be designed according to user requirements
Performance: Suitable for conveying materials with inclination angles of 0-40° to prevent material sliding

Product Standards and Specifications

Variety	Standards and Main Indicators
Ordinary steel cord conveyor belt	GB/T9770-2001
Flame-retardant steel cord conveyor belt	MT668-1997
General flame-retardant steel cord conveyor belt	MT668-1997
Heat-resistant steel cord conveyor belt	HG2297-92
Wear-resistant steel cord conveyor belt	Shaoboer wear amount ≤90mm³
Acid, alkali and oil resistant steel cord conveyor belt	HG4-846
Cold-resistant steel cord conveyor belt	Brittleness temperature -40℃

Pattern Types

1) Herringbone Pattern

The belt surface features "herringbone" patterns higher than the belt body, available in open or closed configurations. Patterns are classified as high, medium, or low types.

Applications: Suitable for conveying powdery, granular, and small materials with inclination angles ≤40 degrees. Also effective for bagged materials.

2) Striped Pattern

Features striped patterns higher than the belt body, available in high, medium, and low types with sparse or dense arrangement spacing.

Applications: Ideal for horizontal transportation of packages with inclination angles ≤30 degrees. When grooved, can serve as an alternative to herringbone patterns.

3) Grainy Pattern

Includes grain patterns that are either raised above or recessed into the belt surface. Pits can be designed as square holes, prismatic shapes, or cloth patterns.

Construction and Composition

The pattern conveyor belt consists of two main components: the base belt and the pattern surface.
