Black Corrugated Sidewall Conveyor Belt NN100 NN150 NN200

The sidewall conveyor belt, also known as the large-inclination corrugated sidewall conveyor belt, was initially developed by a British company and subsequently gained widespread popularization in the industry.

1. Basic concepts

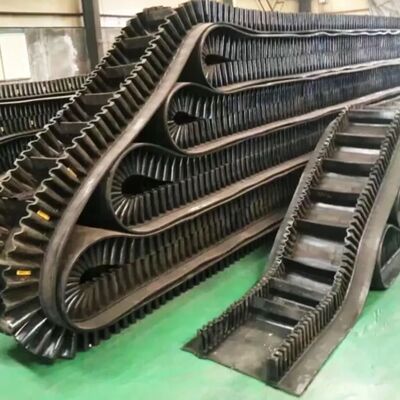

The large-inclination corrugated sidewall belt consists of three core components: the base belt, the sidewalls, and the diaphragms. The sidewalls serve to prevent materials from sliding and falling off. To facilitate belt tracking around the drums, the sidewalls are engineered with a corrugated structure. The transverse partitions are designed to support conveyed materials, and the T-type and TC-type structures are adopted to enable large-inclination conveying. The sidewalls and diaphragms are bonded to the base belt via secondary vulcanization, ensuring exceptional connection strength.

2. Varieties and specifications

Corrugated sidewall conveyor belt (ordinary large-incline corrugated sidewall conveyor belt) varieties: According to the different covering rubber performance, it can be divided into ordinary type, heat-resistant type, flame-retardant type, cold-resistant type, acid-base resistant type, oil-resistant type, etc.
Corrugated rib conveyor belt (ordinary large inclination corrugated rib conveyor belt) specifications:
(1) Core material: CC-56, NN100, NN150, NN200, NN300, NN400
(2) Bandwidth: 100mm-2400mm
(3) Cloth layer: 2-10 layers
(4) Cover rubber: working surface: 1.5-8mm non-working surface: 0mm-4.5mm

<
