Black Corrugated Sidewall Conveyor Belt for Large Inclination Transportation

Merknaam: UCER
Modelnummer: EP100/EP150/EP200/EP250/EP300
MOQ: 100 meter
Prijs: Onderhandelbaar
Leveringstermijn: 10-30 dagen
Betalingsvoorwaarden: L/C, D/P, T/T
Gedetailleerde informatie
Plaats van herkomst:
China
Certificering:
Enterprise credit rating AAA
Kleur:
Zwart
Bandbreedte:
200 mm
Kernmateriaal:
CC-56
Doeklaag:
2-10 lagen
Model:
NN100/NN150/NN200/EP100/EP150/EP200
Het werk oppervlakte:
1.58mm
Non-working oppervlakte:
0mm4.5mm
Ribhoogte (mm):
S80
Verpakking Details:
Ijzerverpakking, ijzerkader of andere
Levering vermogen:
10000 per maand
Markeren:

Large Inclination Transportation Conveyor Belt

,

Large Inclination Conveyor Belt

,

Black Corrugated Sidewall Conveyor Belt

Productbeschrijving

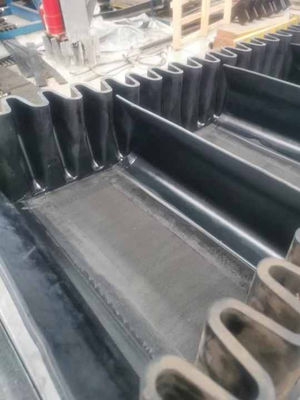

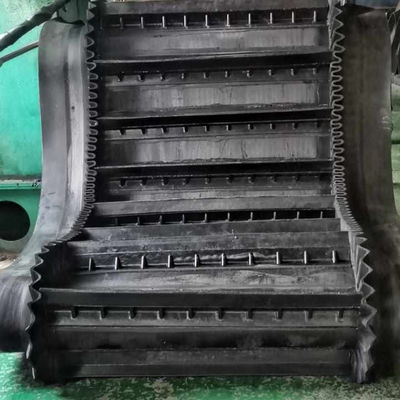

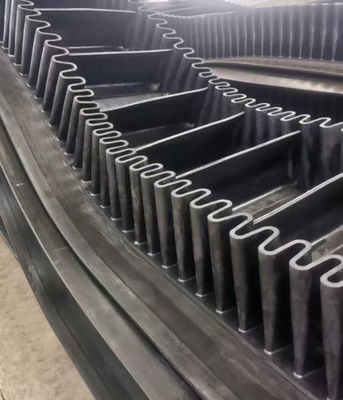

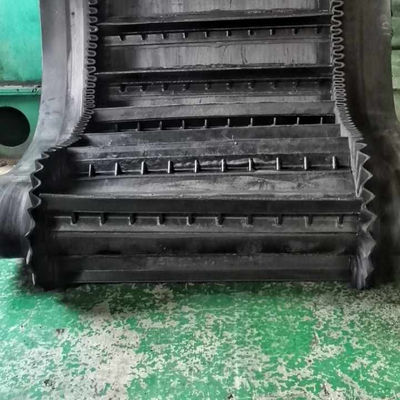

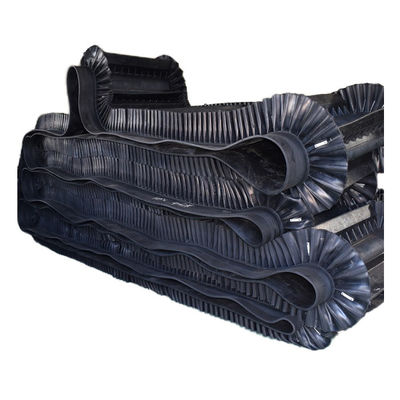

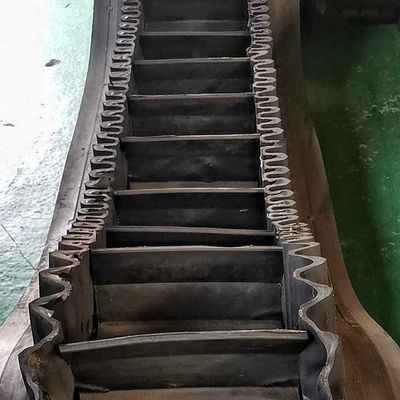

Black Corrugated Sidewall Conveyor Belt NN100 NN150 NN200



The sidewall conveyor belt is a large inclination corrugated sidewall conveyor belt. The sidewall conveyor belt was first developed by a British company and started to be popularized.



1. Basic concepts


The large inclination corrugated sidewall belt is composed of three parts: a base belt, a sidewall, and a diaphragm. The ribs play the role of preventing the material from slipping and falling. In order to easily bypass the drum, the ribs are designed to be corrugated; the transversal partitions are used to support the material. In order to achieve large inclination transportation, the T-type TC type is adopted. The ribs and the diaphragm are connected to the base belt by a secondary vulcanization method, which has a high connection strength.



2. Varieties and specifications


Corrugated sidewall conveyor belt (ordinary large-incline corrugated sidewall conveyor belt) varieties: According to the different covering rubber performance, it can be divided into ordinary type, heat-resistant type, flame-retardant type, cold-resistant type, acid-base resistant type, oil-resistant type, etc.
Corrugated rib conveyor belt (ordinary large inclination corrugated rib conveyor belt) specifications:
(1) Core material: CC-56, NN100, NN150, NN200, NN300, NN400
(2) Bandwidth: 100mm-2400mm
(3) Cloth layer: 2-10 layers
(4) Cover rubber: working surface: 1.5-8mm non-working surface: 0mm-4.5mm



<

Variety Standards and main indicators
Ordinary steel cord conveyor belt GB/T9770-2001
Flame-retardant steel cord conveyor belt MT668-1997
General flame-retardant steel cord conveyor belt MT668-1997
Heat-resistant steel cord conveyor belt HG2297-92
Wear-resistant steel cord conveyor belt Shaoboer wear amount ≤90mm 3
Acid, alkali and oil resistant steel cord conveyor belt HG4-846
HG4-846
Cold-resistant steel cord conveyor belt Brittleness temperature -40℃





Black Corrugated Sidewall Conveyor Belt for Large Inclination Transportation 0Black Corrugated Sidewall Conveyor Belt for Large Inclination Transportation 1Black Corrugated Sidewall Conveyor Belt for Large Inclination Transportation 2Black Corrugated Sidewall Conveyor Belt for Large Inclination Transportation 3Black Corrugated Sidewall Conveyor Belt for Large Inclination Transportation 4Black Corrugated Sidewall Conveyor Belt for Large Inclination Transportation 5
